Colour Production Print Systems

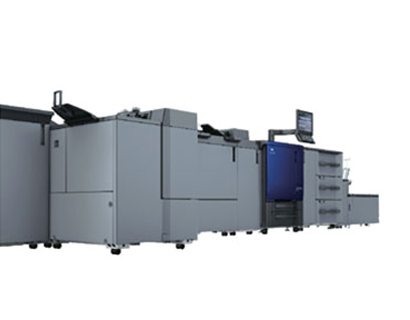

AccurioPress C83hc/C73hc

General Specifications

		C83hc	C73hc
Type		Console type
Colour Support		Full colour(Wide colour gamut witd high chroma toner)
Output Resolution		3,600 dpi(Equivalent)x 1,200 dpi
Gradation		8-bit / 256 gradation
CPU		Core i5 4570S 2.9 GHz
System Memory		4GB
Paper weight	Standard mode	62 gsm to 350 gsm (Auto duplex),(81 gsm to 350 gsm : Coated paper)
	Banner printing mode	128 gsm to 256 gsm
	Standard trays	62 gsm to 216 gsm,(62 gsm to 256 gsm : A4 or larger size)
	Optional trays	62 gsm to 350 gsm (PF-707m,MB-506) 62 gsm to 300 gsm (MB-508, PF-602m, LU-202m, LU-202XL, LU-202XLm)
Paper Size	Standard mode	SRA3, A3, B4, SRA4, A4, SRA4S, A4S, B5S, A5S, 12” x 18”, 11” x 17”, 81/2” x 11” Min. 139.7 mm x 182 mm to Max. 330.2 mm x 487.7 mm
	Banner printing mode	Max. 330.2 mm x 1,300 mm (Max. 330.2 mm x 762 mm : Auto duplex)
	Optional trays	100 mm x 148 mm to 330.2 mm x 487.7 mm (MB-506/MB-508), to 330.2 mm x 1,300 mm (witd MK-740) 100 mm x 139.7 mm1 to 330.2 mm x 487.7 mm (PF-707m) 100 mm x 148 mm1 to 330.2 mm x 487.7 mm (PF-602m, LU-202m) 100 mm x 148 mm*1 to 330.2 mm x 750 mm (LU-202XL), to 330.2 mm x 762 mm (LU-202XLm)
Max. printing area		323 mm x 480 mm, (323 mm x 1,295 mm : Banner paper)
Image loss		Top edge: 4.0 mm or less, Bottom edge: 3.0 mm or less, Right/Left edge: 3.0 mm or less
Warm-up time		390 sec. or less (At room temperature)
Print speed*2	A4 (Landscape)	81 ppm (Full colour/Monochrome)	71 ppm
Print speed*2	A3	45 ppm (Full colour/Monochrome)	39 ppm
Paper feeding capacity (80 gsm)		1,500 sheets (Standard tray), Max. 15,390 sheets (Standard tray + PF-707m x 3 units)
Paper output capacity (80 gsm		150 sheets (witd optional output tray OT-511), Max. 10,000 sheets (LS-506 x 2 units)
Power source		Metric: AC 220V to 240V, 25A, 50Hz/60Hz
Power consumption (Main unit only)		Metric: Max. 6,000W
Dimension		800 mm x 903 mm x 1,041 mm (Main body only)
Space required		631 mm or more for front (for sliding out ADU unit), 200 mm or more from the rear duct, 100mm or more for both sides
Weight		Approx. 313 kg

With small size guide.

Print speed may vary depend on paper type.

AccurioPress C83hc / C73hc Printer Controller

Image Controller IC-605B

Type	Embedded (AIO to the engine, option)
CPU	Intel Core i5 4570S 2.9GHz (Main unit specification)
Memory	4GB (Standard of the main unit) +8GB (IC-605B), +4GB (UK-104)Max. 16GB
HDD	1TB x3 (+500GB with UK-103)
Network	10/100/1000 Base-T
Power source	Supplied from the main unit
Resolution	600x600dpi, 1,200×1,200dpi
Page description language	Adobe PostScript3 (CPSI3020), PDF direct print (PDF ver. 1.7), APPE (Ver. 4.6) (UK-104 and UK-218 are required), PDF/VT (Ver. 2.0) (UK-104 and UK-218 are required), TIFF direct print (TIFF Ver. 6 compliance), PPML (ver. 2.2), PCL-5c compatible, PCL XL (PCL6 Ver. 3) compatible
Protocol (Printing method)	TCP/IP, NetBEUI, IPP, WSD, SMB, Bonjour
OS	Windows 7 / 8.1 /10 Windows Server 2008 / 2008R2 / 2012 / 2012R2 / 2016 Mac OS 10.9-10.13
System	Linux
Main fonts	Adobe 136 fonts, PCL 80 fonts
Driver	PS Plug-in, PPD
Scanner resolution	200 / 300 / 400 / 600 dpi
Data Format	PDF, TIFF, JPEG, XPS, Encrypted PDF, PDF/A-1a,1b
Option	UK-218 (APPE kit), UK-104 (Extension memory, HDD)

Image Controller IC-313 Ver.2.1 (Fiery)

Type	Server type
CPU	Intel Core i5 4570 2.9GHz
Memory	4GB
HDD	1TB
Network	10/100/1000 Base-T
Power source	Max. 350W
Resolution	600x600dpi, 1,200×1,200dpi
Page description language	Adobe PostScript3 (CPSI 3020), PDF Ver.1.7, APPE (Ver. 4.4), FreeForm (Ver. 2.1), PPML (Ver. 2.2), PDF/VT (Ver. 2.0), CreoVPS, PCL (5, 6) emulation
Protocol (Printing method)	TCP/IP, SMB, LPR, Bonjour, SNMP, IPP, FTP
OS	Windows 7 / 8.1 /10 Windows Server 2008 / 2008R2 / 2012 / 2012R2 / 2016 Mac OS 10.9-10.13
System	Windows 10
Main fonts	138 fonts
Driver	PostScript 3
Scanner resolution	00/300/400/600 dpi
Data Format	PDF, TIFF, JPEG
Option	Fiery Impose-Compose, ES2000/EFI Color Profiler Suite, GA Package Premium Edition, Job Master

Image Controller IC-417 Ver.2.1 (Fiery)

Type	Embedded (AIO to the engine, option)
CPU	Intel G4400, 3.3 GHz
Memory	4GB
HDD	500GB
Network	10/100/1000 Base-T
Power source	Max. 150W
Resolution	600x600dpi, 1,200×1,200dpi
Page description language	Adobe PostScript3 (CPSI 3020), PDF Ver.1.7, FreeForm (Ver. 2.1), PCL (5,6) emulation
Protocol (Printing method)	TCP/IP, SMB, LPR, Bonjour, SNMP, IPP, FTP
OS	Windows 7 / 8.1 /10 Windows Server 2008 / 2008R2 / 2012 / 2012R2 / 2016 Mac OS 10.9-10.13
System	Linux
Main fonts	138 fonts
Driver	PostScript 3
Scanner resolution	200/300/400/600 dpi
Data Format	PDF, TIFF, JPEG
Option	Fiery Impose-Compose, Hot Folder, Auto Trapping,ES2000/EFI Color Profiler Suite, Embedded Productivity Package, Job Master
