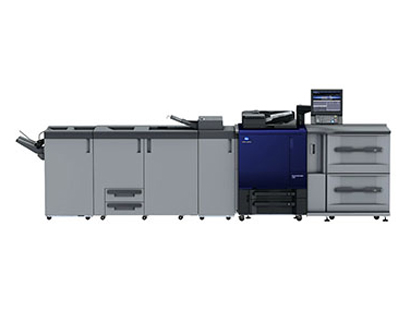

| Model Name | AccurioPress C3080 | |
|---|---|---|
| Type | Console type | |
| Colour Support | Colour Support | |
| Resolution | scan | 600 dpi x 600 dpi |
| 3,600 (Equivalent) x 1,200 dpi | ||
| Gradation | 8-bit / 256 gradation | |
| CPU | Core i5 4570S 2.9 GHz | |
| Memory | 10GB | |
| HDD | 1 TB x 3 | |
| Original Type | 1Sheet, Book, Solid object | |
| Max. Original Size | A3 or 11×17 | |
| Max. Printing Area | 323 mm x 480 mm (Banner paper: 323 mm x 1,295 mm) | |
| Paper Size | Standard: SRA3, A3, B4, SRA4, A4, B5, A5, A5S, 13×19, 12×18, 11×17, 9×11, 8 1/2×14, 8 1/2×11, 51/2×81/2S, Tab paper (A4, 81/2×11) Max. 330 mm x 487 mm, Min. 140 mm x 182 mm*1 Multi-bypass (Option): SRA3, SRA4, A3, B4, A4, B5, A5, B5S, 13×19, 12×18, 11×17, 8 1/2×11, Postcard Max. 330 mm x 487 mm, Min. 100 mm x 148 mm Banner Printing Mode: Length 488 to 1,300 mm |
|
| Image Loss | Max. 4.0 mm or less for top edge, Max. 4.5 mm or less for bottom edge, Max. 3.0 mm or less for right/left edges | |
| Warm-up Time | 390 seconds or less (at room temp 20°C, rated power supply) | |
| First copy Out Time*2 | Black & White | 4.2 seconds or less |
| Full Colour | 6.5 seconds or less | |
| Continuous Print Speed Full Colour/Black & White*3 | 81/81 pages/min. (A4 landscape) 45/45 pages/min. (A3) |
|
| Copy Magnification | Fixed Same Magnification | 1: 1±0.5% or les |
| Scaling Up | 1: 1.154/1.224/1.414/2.000 | |
| Scaling Down | 1: 0.866/0.816/0.707/0.500 | |
| Preset | 3 types | |
| Zoom | 25 to 400% (in 0.1% increments) | |
| Tray Capacity | Standard: 1,500 sheets (80 gsm) Option: Multi-bypass, 250 sheets (80 gsm) | |
| SPaper Weight | 662 gsm to 350 gsm (Coated paper: 81 gsm to 350 gsm) Main Unit: 62 gsm to 216 gsm PF-707m, MB-506: 62 gsm to 350 gsm MB-508, PF-602m, LU-202 XLm, LU-202m: 62 gsm to 300 gsm |
|
| Continuous Print Count | Up to 9,999 sheets | |
| Auto Duplex | SRA3, SRA4, A3, B4, A4, B5, A5, B6S, A6S, 13×19, 12×18, 11×17, 9×11, 8 1/2×14, 8 1/2×11, 5 1/2×8 1/2S, Postcard Max. 330 mm x 487 mm, Min. 100 mm x 148 mm Paper Weight: 62 gsm to 350 gsm | |
| Paper Output Capacity | 150 sheets (with an optional Output Tray OT-511) | |
| Power Source | Inch : AC208 to 240V, 24A, 60 Hz Metric : AC220 to 240V, 25A (EU)/20A (AU), 50 Hz / 60 Hz | |
| Power Consumption | 6000W for EU Market(Main Unit) | |
| Peak volume*4/Month(A4) | 864K | |
| Average Volume*4/Month(A4) | 54K | |
| Dimensions ( W x D x H ) | 800 mm x 903 mm x 1,076 mm (Main body + Original Cover) | |
| Space Requirements | 631 mm or more in the front (for sliding out ADU unit), 200 mm or more from the rear duct, 100 mm or more on the both sides | |
| Weight | Approx. 316 kg | |
| Type | Server | Built-in main unit | Server | |
|---|---|---|---|---|
| Manufactured by | KM | EFI | EFI | Creo |
| CPU | Intel Core i5 4570S 2.9GHz | Intel Core i5 4570S 2.9GHz | Intel Pentium G4400 3.3GHz | Intel Core i7 4790S 3.2GHz |
| Memory | 12GB (IC-605B); 16GB (IC-605B+UK-104) |
4GB | 4GB | 12GB |
| HDD | 1TBx3 (IC-605); 1TBx3+500GB (IC-605+UK-104*) |
1TB | 500GB | User: 1TB Image: 2 TB |
| System | Linux | Windows 10 | Linux | Windows 10 |
| PDL | PostScript3 | PostScript3 (CPSI3020); | PS3(CPSI3020); PDF | PostScript3 (CPSI3020); |
| language | (CPSI3020);PDF Ver.1.7; TIFF Ver.6 compliant; PPML Ver.2.2; PCL5c compatible; PCL XL (PCL6 Ver.3) compatible; APPE Ver.4.2; PDF/VT Ver.2 | PDF Ver.1.7; PPML Ver.3.0; APPE Ver.4.4; PCL (5,6) emulation | Ver.1.7;PCL (5,6) emulation | PDF Ver.1.7; APPE Ver.3.4; PPML Ver.2.2; PPML/VDX Creo VPS; Optimized PS; PDF/VT2 |
| Supported protocol | TCP/IP, NetBEUI, IPP, WSD,SMB, Bonjour | TCP/IP, SNMP, IPP, FTP, SMB,Bonjour, LPR | TCP/IP, SNMP, IPP, FTP, SMB,Bonjour, LPR | TCP/IP, SMB, Bonjour, LPR |
| Compatible OS | Windows 7, 8.1, 10; Windows Server 2008 (R2), 2012 (R2), 2016 (incl. 64bit version); MacOSX 10.9-10.13 | Windows 7, 8.1, 10; Windows Server 2008R2, 2012/R2, 2016 ;MacOSX 10.9-10.13 | Windows 7, 8.1, 10; Windows Server 2008R2, 2012/R2, 2016 ; MacOSX 10.9-10.13 | Windows 7, 8.1, 10 Windows Server 2008, 2012, 2016 MacOSX 10.8-10.12 (TBD) |
| Driver | PS Plugin, PPD | PostScript3 | PostScript3 | PostScript3 |
